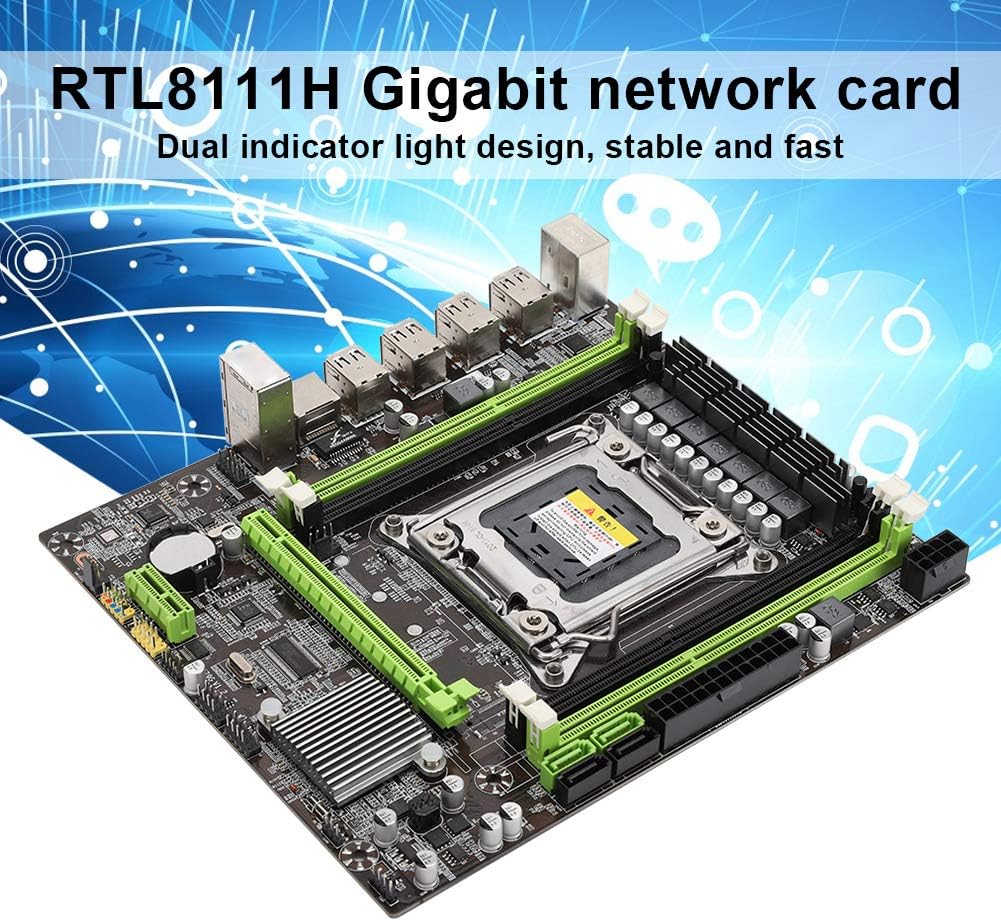

1. Integrated Gigabit network card and sound card, RTL8111H Gigabit network card, dual indicator design is stable and fast, supports diskless boot, audio chip integrates 6-channel audio chip, the main chipset is the real X79 chip series.
2. DDR3 memory, the frequency is 1066/1333/1600/1866MHz, supports ordinary memory and RECC server memory can not be mixed at the same time, four memory slots can be used alone, the main memory slot can be used normally.
3. The CPU slot is LGA 2011, and the expansion slot supports 1XPCI-E×16 graphics card slot, 1XPC1-EX1 slot, 4XUSB2.0 slot (2 groups), 2×SATA2.0 interface and 2×SATA3.0 interface.

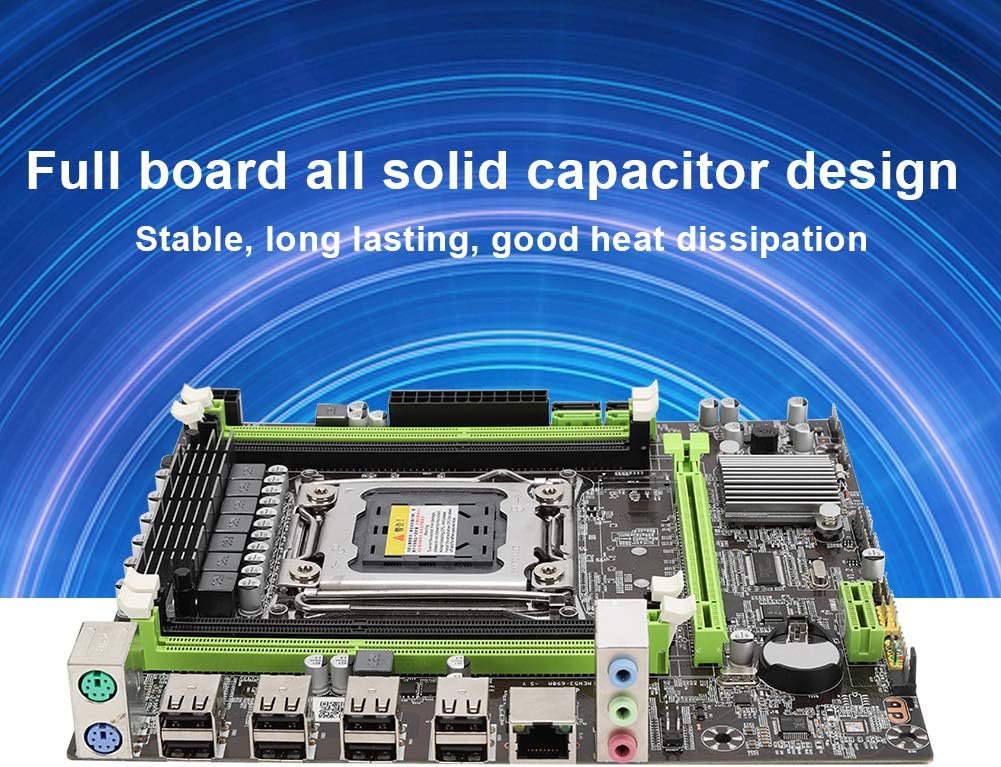

4. All-board all-solid capacitor designsend power supply cooling block, which is more stable and durable than ordinary capacitors, and has good heat dissipation. The power socket has a 4-pin (close to the middle of the board when only 4-pin is connected), a 24-pin power connector, and the power supply mode is 7+1 phase.
5. The color of the slot bottom plate, the location of the interface, etc. may be different for each batch, and the product is continuously optimized and upgraded, and does not affect the normal use of product performance and functions. If you feel dissatisfied with the product after you have met the product, please contact us immediately and we will do our best to solve your problem.
Motherboard Chip: Inte1ntegrated sound card / network card main chipset real X79 chip series
Audio Chip: Integrated 6-channel audio chip
Network Card Chip: Integrated RTL8111H Gigabit network card
Processor: CPU Slot LGA 2011
CPU Type: for Xeon series and for i7 series
Memory: Memory type DDR3 1066/1333/1600/1866MHz (REG ECC or normal desktop memory) Memory slot 4xDDR3 DIMM slot Four channel four memory slot, no usage restrictions
Expansion Slot: 1 x PCI-Ex16 graphics card slot, 1 x PC1-EX1 slot, 4XUSB2.0 slot (2 groups), 2 x SATA2.0 interface, 2 x SATA3.0 interface
I / O Interface: PS / 2 interface PS / 2 mouse and keyboard universal interface, 1 x Rj45 network interface, 8 x USB2.0 interface, audio interface
Other Parameters: A 4-pin power socket (in the middle of the board when only 4 pins are connected), a 24-pin power interface power supply mode 7+1 phase
Battery: CR2032 x 1

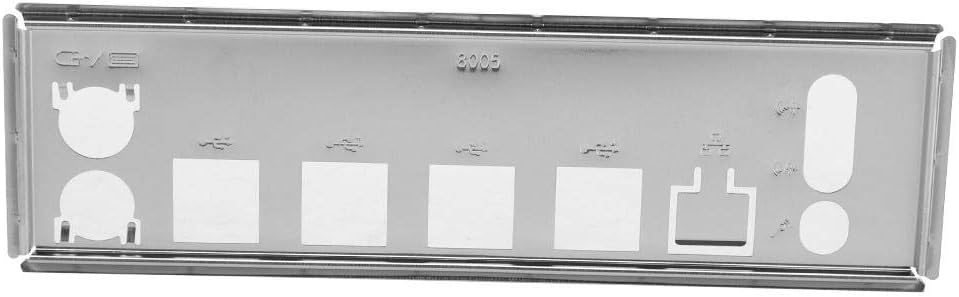

1 x Baffle
1 x SATA Cable
Electronics Computers & Accessories Computer Components
LGA 2011 Motherboard W57586
Sale price
$30.90
Regular price $104.74
Shipping calculated at checkout.
1. Integrated Gigabit network card and sound card, RTL8111H Gigabit network card, dual indicator design is stable and fast, supports diskless boot, audio chip integrates 6-channel audio chip, the main chipset is the real X79 chip series.
2. DDR3 memory, the frequency is 1066/1333/1600/1866MHz, supports ordinary memory and RECC server memory can not be mixed at the same time, four memory slots can be used alone, the main memory slot can be used normally.
3. The CPU slot is LGA 2011, and the expansion slot supports 1XPCI-E×16 graphics card slot, 1XPC1-EX1 slot, 4XUSB2.0 slot (2 groups), 2×SATA2.0 interface and 2×SATA3.0 interface.
4. All-board all-solid capacitor designsend power supply cooling block, which is more stable and durable than ordinary capacitors, and has good heat dissipation. The power socket has a 4-pin (close to the middle of the board when only 4-pin is connected), a 24-pin power connector, and the power supply mode is 7+1 phase.
5. The color of the slot bottom plate, the location of the interface, etc. may be different for each batch, and the product is continuously optimized and upgraded, and does not affect the normal use of product performance and functions. If you feel dissatisfied with the product after you have met the product, please contact us immediately and we will do our best to solve your problem.
Specification:
Item Type: MotherboardMotherboard Chip: Inte1ntegrated sound card / network card main chipset real X79 chip series
Audio Chip: Integrated 6-channel audio chip
Network Card Chip: Integrated RTL8111H Gigabit network card
Processor: CPU Slot LGA 2011
CPU Type: for Xeon series and for i7 series
Memory: Memory type DDR3 1066/1333/1600/1866MHz (REG ECC or normal desktop memory) Memory slot 4xDDR3 DIMM slot Four channel four memory slot, no usage restrictions
Expansion Slot: 1 x PCI-Ex16 graphics card slot, 1 x PC1-EX1 slot, 4XUSB2.0 slot (2 groups), 2 x SATA2.0 interface, 2 x SATA3.0 interface
I / O Interface: PS / 2 interface PS / 2 mouse and keyboard universal interface, 1 x Rj45 network interface, 8 x USB2.0 interface, audio interface
Other Parameters: A 4-pin power socket (in the middle of the board when only 4 pins are connected), a 24-pin power interface power supply mode 7+1 phase
Battery: CR2032 x 1

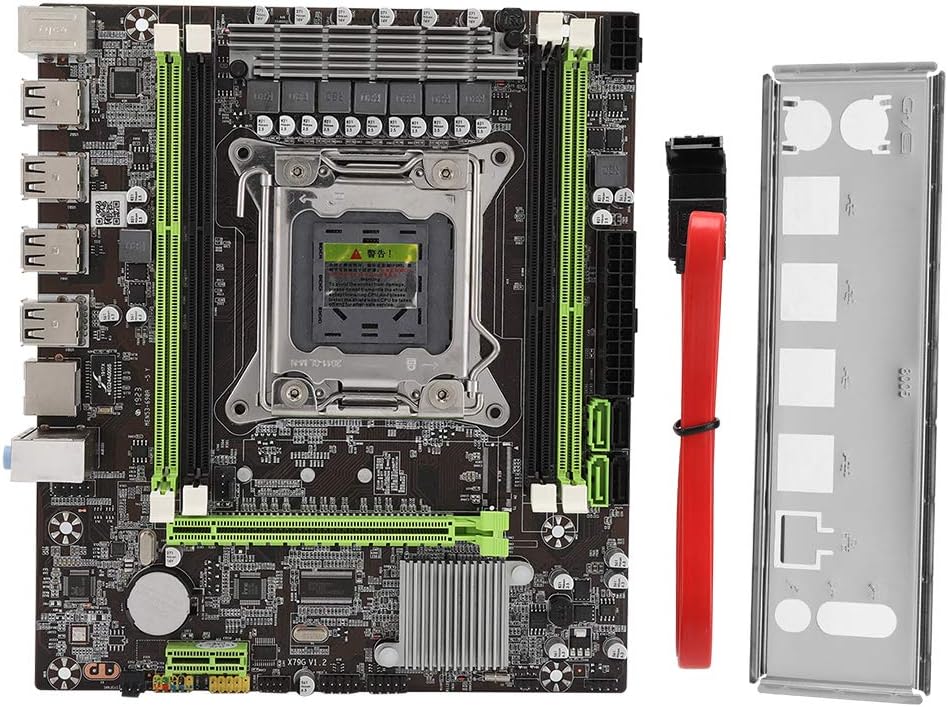

Package List:
1 x Motherboard1 x Baffle
1 x SATA Cable
Note:
The color of the slot base plate, the interface position, etc. may be different for each batch. The product is continuously optimized and upgraded, and does not affect the normal performance of the product performance and function.Electronics Computers & Accessories Computer Components
