8MP 1080P Auto Focus USB Camera Module with Metal Case and Microphone I39813
8MP 1080P Auto Focus USB Camera Module with Metal Case and Microphone I39813
More than HD: This camera adopts 8MP IMX179 sensor for sharp image and accurate color reproduction
Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
Capture Video with Audio: high frame rates, MJPG 15fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480; audio, single microphone (optional dual channel).

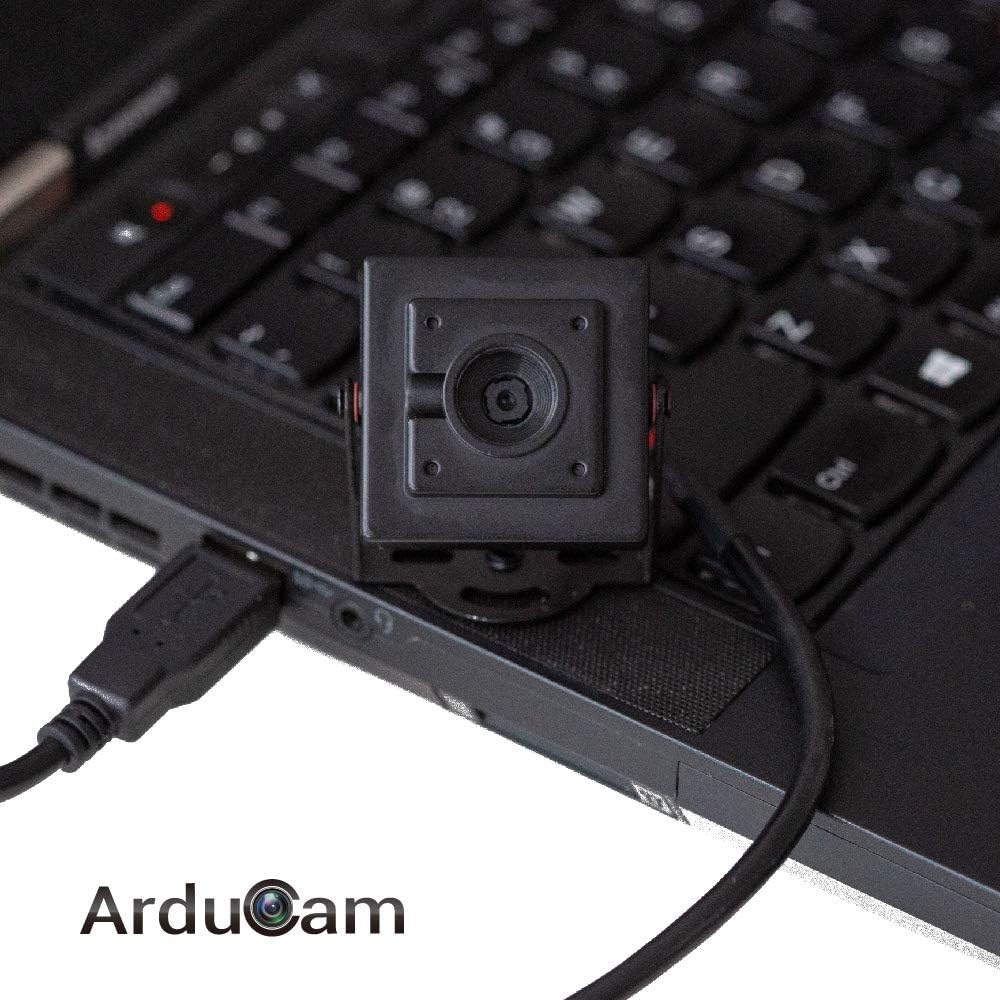

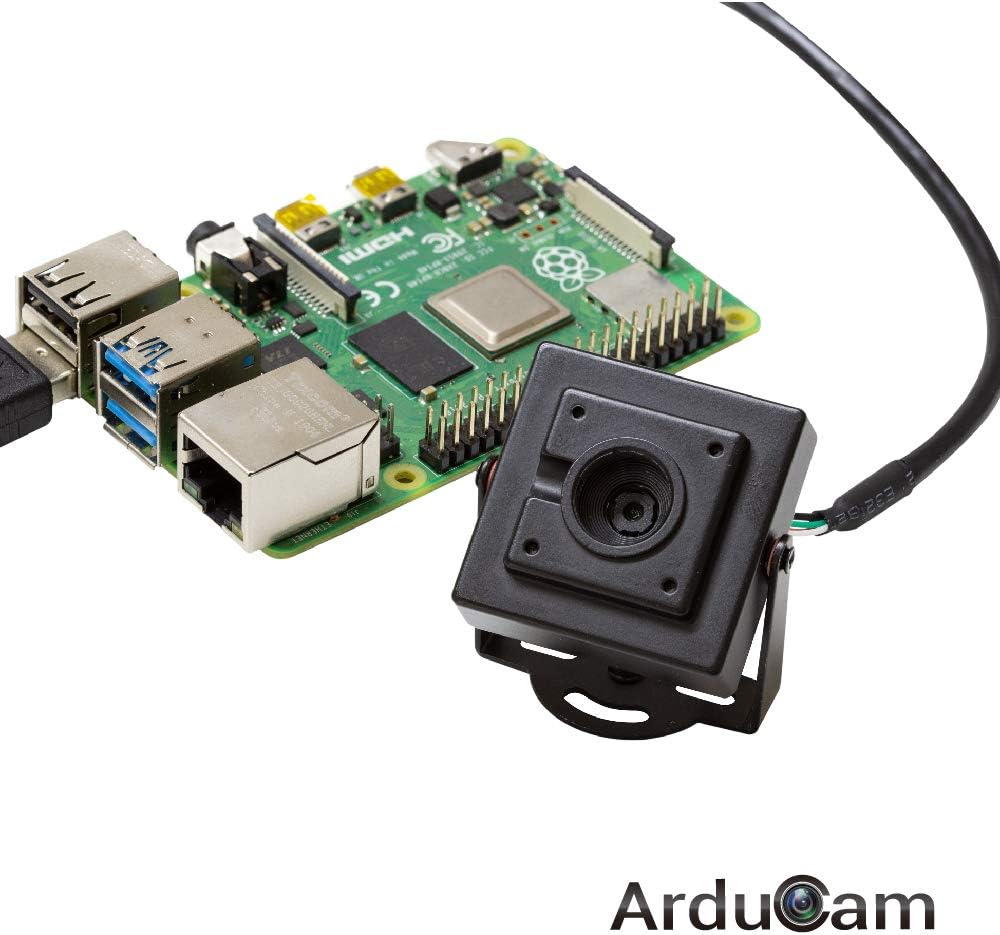

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: this tiny camera board with metal case can be placed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application.

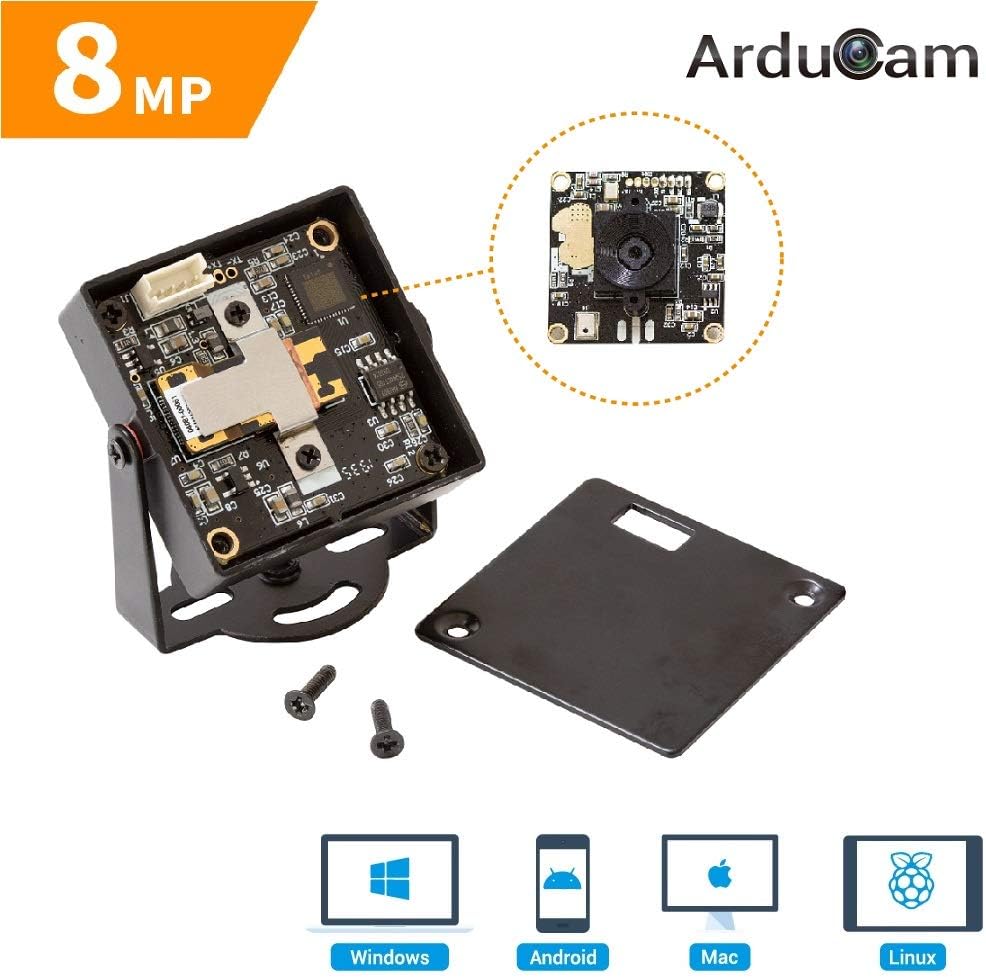

The B019701 is a new member of the Arducam’s USB camera family. It’s an 8MP, UVC compliant, autofocus (AF) based on the 1/3.2” IMX179 image sensor, high speed USB 2.0 camera with metal case.
SPECIFICATIONS
Camera
- Sensor: 1/3.2” IMX179
- Resolution: 8MP 3264H x 2448V
- Data Format: MJPG/YUY2
- Frame Rate: MJPG 15fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480
Lens
- Field of View (FOV)：D= 74.6°, H= 64.5°, V= 46. 6°
- Lens Mount: M6.5
- Focusing Range: 40mm to infinity
- IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: single microphone (optional dual channel)
- System Compatibility: Win7/8/10, Linux, Mac and Android with UVC
Power
- Power Supply: USB powered 5V
- Working Current: MAX 350mA
Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C).

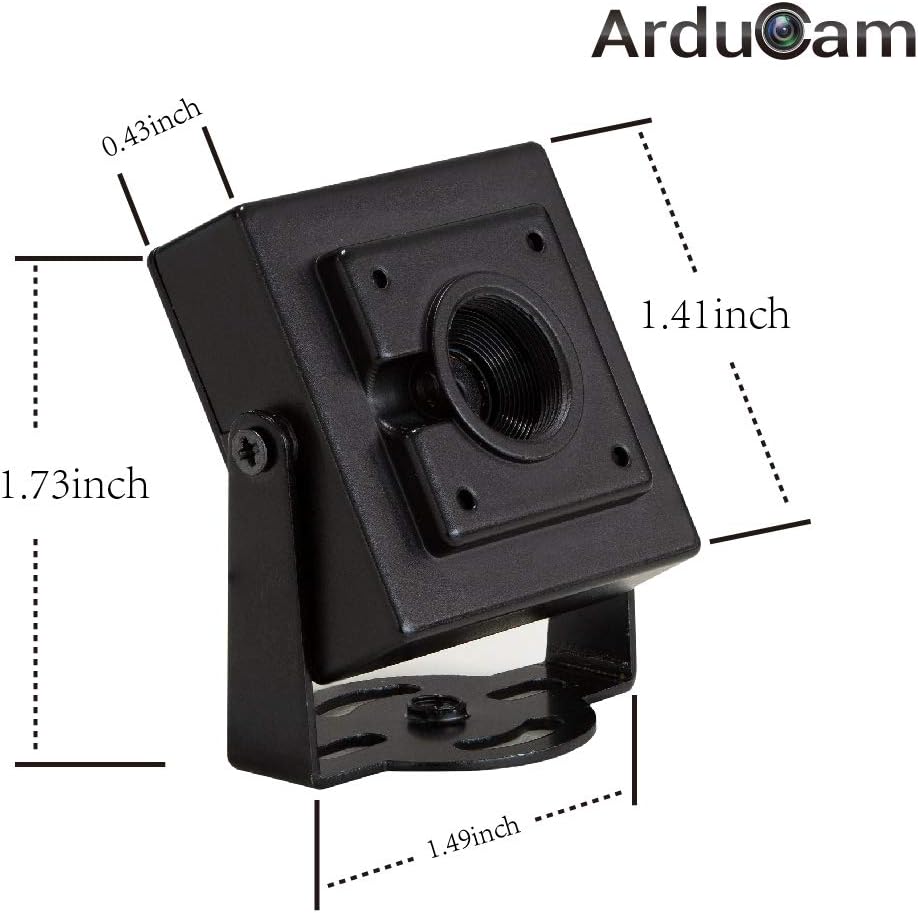

- Dimension: 42mmx39mm
- Cable Length: Default 3.3ft (1M)
